F62 Round Die
F62 Round Die
$25 (USD)
orCall 281-915-4382
Description
All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F20 and F26 Round Punches.
Dimensions:

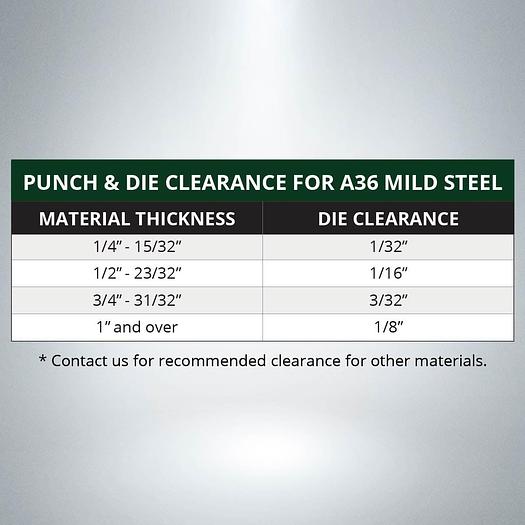

Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Cross Reference:
F62 Die
AP-319, CST-419, GFM-85, PIR-JF
Proudly Made in the USA
5/32"
3/16"
7/32"
1/4"
9/32"
5/16"
11/32"
3/8"
13/32"
7/16"
15/32"
1/2"
17/32"
9/16"
19/32"
5/8"
21/32"
11/16"
23/32"
3/4"
25/32"
13/16"
27/32"
7/8"
29/32"
15/16"
31/32"
1"
1-1/32"
1-1/16"
1-3/32"
1-1/8"
1-5/32"
1-3/16"
1-7/32"
1-1/4"
1-9/32"
1-5/16"
1-11/32"
1-3/8"
1-13/32"
1-7/16"
1-15/32"
1-1/2"
1-17/32"
1-9/16"
1-19/32"
1-5/8"
Specifications
| Manufacturer | Cleveland Punch & Die |
| Condition | New |
| Outside diameter | 2.375" |
| Height | 1.250" |
