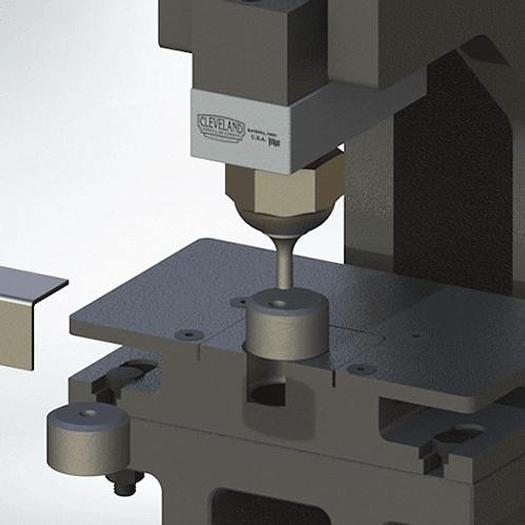

F59 Round Offset Die
F59 Round Offset Die
$49 (USD)
orCall 281-915-4382
Description
Stock Round Offset Dies are supplied with one locator notch. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F16, F20 and SR20K Round Punches.
*Do not use an Offset Die if you CANNOT adjust your die holder.
Dimensions:
Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Cross Reference:
F59 Die
AP-317, CST-417, GFM-82, PIR-JC, SCOT-82
Proudly Made in the USA
9/32"
5/16"
11/32"
3/8"
13/32"
7/16"
15/32"
1/2"
17/32"
9/16"
19/32"
5/8"
21/32"
11/16"
23/32"
3/4"
25/32"
13/16"
27/32"
7/8"
29/32"
15/16"
31/32"
1"
1-1/32"
1-1/16"
1-3/32"
1-1/8"
Specifications
| Manufacturer | Cleveland Punch & Die |
| Condition | New |
| Outside diameter | 2.000" |
| Height | 1.000" |
