F26 Hexagon Punch with V-Groove
F26 Hexagon Punch with V-Groove
$67 (USD)
orCall 281-915-4382
Description
Punches are supplied with a single v-groove. Use 1/8" Round x 1-5/8" Long Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F62 Hexagon Dies.
Dimensions:
Punch & Die Clearance:

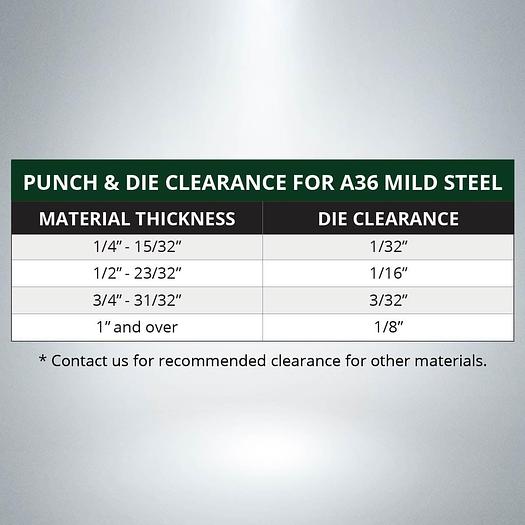

Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note:
Material thickness should not exceed the smallest punch size.
Cross Reference:
F26 Punch
AP-128, CST-228, GFM-45, PIR-EF
Proudly Made in the USA
11/32"
3/8"
13/32"
7/16"
15/32"
1/2"
17/32"
9/16"
19/32"
5/8"
21/32
11/16"
23/32"
3/4"
25/32"
13/16"
27/32"
7/8"
29/32"
15/16"
31/32"
1"
1-1/32"
1-1/16"
1-3/32"
1-1/8"
1-5/32"
1-3/16"
1-7/32"
1-1/4"
Specifications
| Manufacturer | Cleveland Punch & Die |
| Condition | New |
| Head diameter | 1.687" |
| Body diameter | 1.531" |
| Overall length | 2.687" |
