20 x 60" Bed Gap Metal Lathe | 2-Axis DRO | 3-1/8" Bore
20 x 60" Bed Gap Metal Lathe | 2-Axis DRO | 3-1/8" Bore
$21,850 (USD)
orCall 281-915-4382
Description

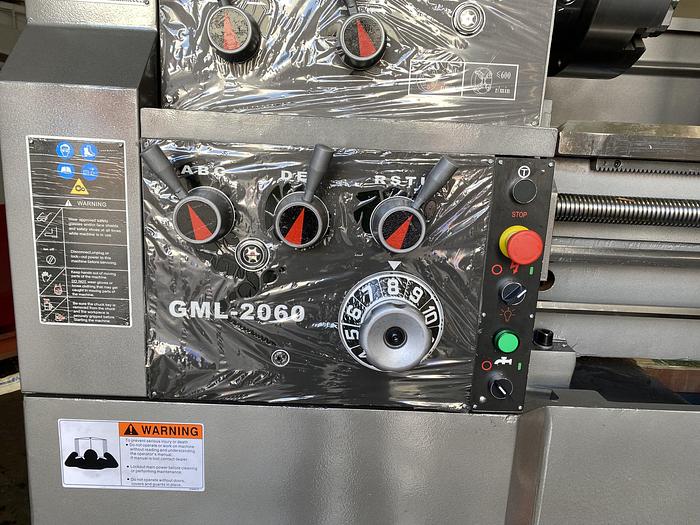

Bed Gap Metal Lathe # GML-2060, 20” x 60”, 3-1/8” bore, 10HP
ISO 9001 certified
1-Year Parts Only Warranty
Large spindle bore 3-1/8”
Spindle D1-8
Guideway width 12”
Main motor 10HP
16 spindle speeds from 25-1,800 rpm, 12 speeds
4-way rapid traverse on the carriage longitudinal and cross
60 kinds of inch threads, and 41 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
1 1/4" x 4 TPI
Diameter of tailstock quill 2-3/8”
Max. travel of tailstock quill
5-1/8”
Taper of tailstock quill center MT4
Main motor
10 HP 3 Ph.
Coolant pump
1/8 HP 3 Ph.
Net weight 5,750 lbs.
Overall dimensions, LxWxH 108" x 43" x 59"
Specifications
| Manufacturer | GMC |
| Condition | New |
| Max. swing over bed | 20" |
| Max. length of workpiece | 60" |
| Max. swing over cross slide | 12 1/2" |
| Max. swing in gap | 29-1/8" |
| Width of bed | 12" |
| Effective length in gap to spindle | 6" |
| Effective length in gap to chuck jaws | 3 1/2" |
| Spindle bore | 3 1/8" | D1-8 |
| Taper of spindle center | MT7 |
| Spindle speeds | 25-1,800 rpm / 12 steps |
| Longitudinal feeds | 0.0011-0.063 IPR, 42 kinds |
| Cross feeds | 0.0003-0.018 IPR, 42 kinds |
| Inch threads | 2-112 TPI, 60 kinds |
| Metric threads | 0.1-14 mm , 41 kinds |
| Diametral pitch threads | 4-112DP , 50 kinds |
| Module threads | 0.1-7mm, 34 kinds |
| Max. travel of top slide | 5" |
| Max. travel of cross slide | 11 1/4" |
| Spindle length w/o chuck | 17-1/2"Leadscrew length X TPI |
| Prewired | 220VAC |
| Optional | 440VAC |
