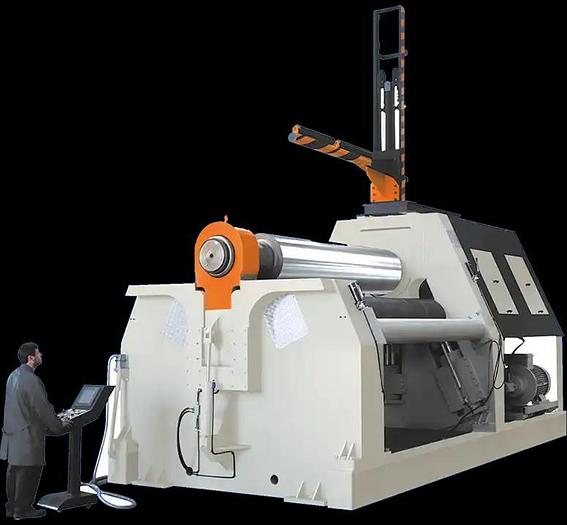

KAAST PLATE ROLLER RBD-4

Four-roll plate rolls are used for high-precision rolling of thick plates with up to 3" material thickness. The four roll slip rollers allow for pre-bending of sheet metal. While eliminating the need to remove, spin, and reinsert material to avoid flat spots.

The KAAST series of 4-roll plate roller machines RBD-4HD and RBD-HL roll sheet metal into shapes such as cylinders and cones for wind-power, HVAC ducts, construction, shipbuilding, tanks, trucks, and more. The upper roller is fixed in place, the lower roller move upwards to clamp onto the workpiece, and the side rollers move up and down at an oblique angle to adjust the shape and size of the rolled part. Model RBD-4HD plate roller features motorized top and side rollers, and our RBD-4H and HL features a motorized top and bottom roller.

Key Features of 4 Roll Plate Rolls

Our metal sheet rolling machines use top brand components like Siemens, Rexroth, Bosch, Parker, Atos, Telemechanique, SKF, NSK, and FAG to guarantee high-quality lifelong performance. These plate rollers have solid, welded frames and high-quality, heavy-duty bearings, which minimize friction and ensure even rotation of the rollers. Where applicable the planetary gears are mounted directly on the rollers, the transmission of force on these rolling machines for metal takes place with minimal loss of force or power. Simultaneous use of torsion bars and hydraulic units ensures accuracy and enables flexibility. With our optional extras for the plate and slip rolls you can upgrade the level of automation, which will raise your productivity and flexibility.

With over 50 years of experience in sheet metal bending and thousands of reference customers, KAAST Machine Tools assures first-class support in any application or maintenance question.

• RBD-4H • Medium to heavy-duty plate rolling machine - 2' to 13' x up to 0.5"
• RBD-4HL • Heavy-duty plate rolling machine - 3' to 10' x up to .05"
• RBD-4HD • Extra heavy-duty plate rolling machine - 6' to 20' x up to 3"

Plate Rolls Standard Configuration

• Overload protection
• Digital readout
• Hydraulic closure for easy removal of finished ferrule
• Easy operation with mobile control panel
• Induction hardened rolls made of SAE 1050 (CK 45) steel
• Conical bending
• Automatic lubrication (RBD-4HD • RBD-4HL)
• Operation manual

Plate Rolls Optional Configuration

• Overhead crane for large diameters
• Hydraulic lateral side supports for large diameters
• Ground and polished rolls
• Two speed system
• NC or CNC control system for bend automation
• Hydraulic work piece ejector
