AUTOMEC COASTON C-SERIES ELECTRIC PRESS BRAKE

C-Series: 25-50 Ton, Electric Press Brake 2.8 Ft. – 5.25 Ft. Bed

The C series of press brakes are the smallest “fully electric,” servo-driven press brakes found in the CoastOne press brake line. The C-Series small press brakes feature 1 to 2 ball screws using a “direct drive system” to administer force. Each ball screw is capable of producing about 25 tons of force. By using these ball screws in a “direct drive system,” it makes our press brakes very affordable compared to traditional hydraulic press brakes. They’re great for companies looking to free up capacity on their larger press brakes by having a small press brake in the shop as well. For average daily use, the C9 small press brake typically consumes less than 1.5 kW. By eliminating the need for hydraulic oil, the customer benefits by eliminating the cost of expensive oil changes, spare parts, valves, and maintenance found with traditional small hydraulic press brakes.

C9 Electric Press Brake (25 Ton, 2.85ft. Bed)

The C9 electric press brake features a single ball screw, which makes it a very affordable investment, but is still capable of bending a vast majority of smaller parts. Its small size allows the operator to sit while working, which ensures a high level of ergonomics. The C9 is a 25ton electric press brake and has a 2.85ft. bed length.

C9X Electric Press Brake (25 Ton, 2.85 ft. bed)

The C9’s taller brother provides a larger daylight (opening from tool holder to bottom die holder), compared that of the standard C9 small press brake. It allows more versatile bending capabilities and tooling options. Besides the added height the C9X is similar to the C9. It allows the operator to sit while working, ensuring a high level of ergonomics.

C12 Electric Press Brake (50 Ton, 4.25 ft. Bed)

The C12 is the big brother of the C9. It provides an extra punch (50-ton force) if you need more force than the 25 tons found with the C9. With 2 ball screws and servos instead of 1, the C12 doubles the capable bending strength. Also, it has a longer bed length (4.25 ft.) which allows bending of wider parts.

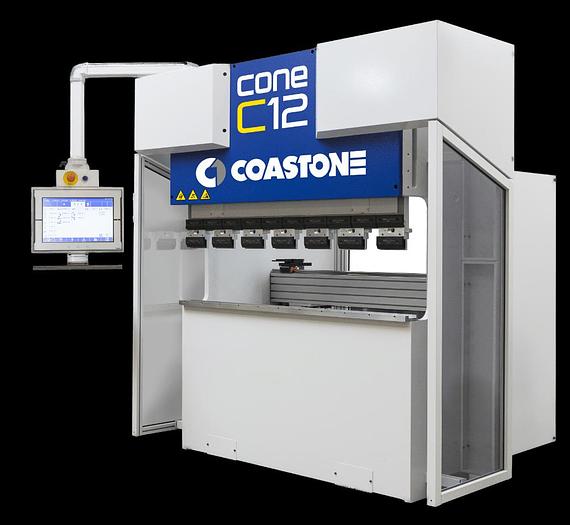

C12X Electric Press Brake (50 Ton, 4.25 ft. Bed)

C12’s taller brother provides a larger daylight (opening from tool holder to bottom die holder), compared to the standard C12 machine. It allows more versatile bending capabilities and tooling options. Besides the additional height the C12X is similar to the standard C12. It features 2 ball screws and a maximum bending length of 4.25ft

C15 Electric Press Brake (50 Ton, 5.25 ft. Bed)

The C15 is the biggest machine of the C-Series. The C15 features 2 servo driven ball screws, with 50 tons capable force. Its bed length (5.25ft.) allows you to bend a large variety of parts, while still maintaining low operating costs. The C15 is a versatile machine and a practical alternative for a larger press brake.

C15 X Electric Press Brake (50 Ton, 5.25 ft. Bed)

The tallest C-Series machine, the C15X, provides a bigger daylight (opening from tool holder to bottom die holder), compared to the standard machine. It allows more versatile bending capabilities and tooling options. Besides the additional height the C15X is similar to the standard C15. It features 2 ball screws and a bed length of 5.25ft.
